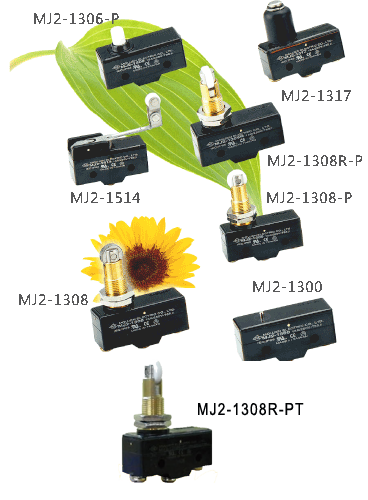

  MINI LIMIT SWITCHES  (Made in Taiwan)
CHARACTERISTICS :


Operating speed

0.01mm to 1m/sec

Operating frequency

Mechanically: 240 operations/min.
Electrically: 20 operations/min.

Contact resistance

15m max.(initial)

Insulation resistance

100M min.( at 500V DC)

Dielectric strength

1,000VAC,50/60 Hz for 1 minute between non-continuous terminals 2,000 VAC, 50/60 Hz for 1 minute between current-carry part and ground.

Vibration

Malfunction durability:10 to 55 Hz
1.5mm double amplitude

Shock

Mechanical durability:
Approx.1,000m/sec2(approx.100G's)
Malfunction durability:Approx.300m/ sec2
(approx.30G's)

Ambient operating temperature

General purpose type: -25 to +80
Sealed type: -15 to +80

Humidity

General purpose type: 85% RH max
Sealed type: 95% RH

Service life

Mechanically:
20,000,000 operations min
Electrically:(1.7A,110VAC)MAX
500,000 operations min.
