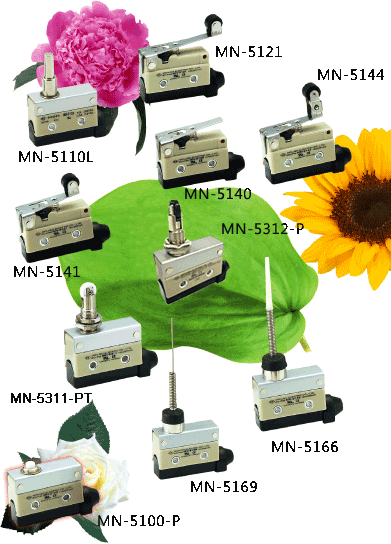

  MINI ENCLOSED LIMIT SWITCHES  (Made in Taiwan)
FEATURES :
Side ,mount switches.
Momentary contacts.
Wide choice of heads and actuators.
Sealed actuators.
Completely sealed structure.
Plastic sealed construction.
Temperature range : +5 to +175 (-15 to +80).

RATING :

10A

250V AC

0.5A

125 V AC



CIRCUITRY :

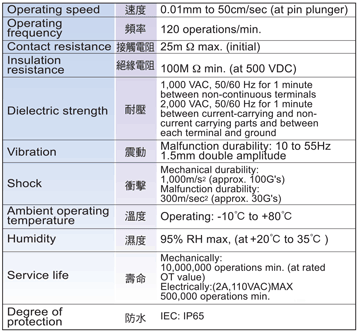

CHARACTERISTICS :

Operating speed

0.01mm to 50cm/sec(at pin plunger)

Operating frequency

120 operations/min.

Contact resistance

25m max.(initial)

Insulation resistance

100M min.(at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2000 VAC, 50/60 Hz for 1 minute between current-carrying and non-current carrying parts and between each terminal and ground.

Vibration

Malfunction durability:10 to 55Hz 1.5mm double amplitude

Shock

Mechanical durability:
1,000m/sec2 (approx. 100G's)
Malfuncation durability:300m/sec2 (approx.30 G's)

Ambient operationg temperature

Operating: -10 to + 80

Humidity

95% RH max (at +20 to +35)

Service life

Mechanically:
10,000,000 operations min.(at rated OT value)
Electrically:(2A, 110VAC)MAX
500,000 operations min.

Degree of protection

IEC:IP65
