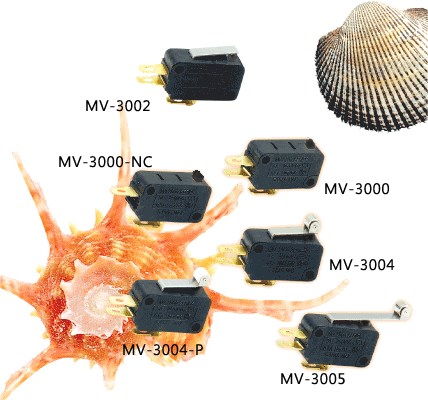

  MICRO SWITCHES  (Made in Taiwan)
FEATURES :
Small dimensions suitable for OEM uses.
High temperature type, max 120.
Wide choice of heads and actuators.
Long life service.

RATING :

Standard type : (UL recognized)
5A

125 or 250V AC

0.5A

125 or 250V DC


High current type :
20A

125 or 250V AC

0.5A

125 or 250V DC


CIRCUITRY :


REMARK :
  MV-3003AL,MC-3003BL Actuator length 55.5mm







CHARACTERISTICS :

Operating speed

0.01mm to 1m/sec

Operating frequency

Mechanically: 600 operations/min.
Electrically: 60 operations/min.

Contact resistance

15m max.(initial)

Insulation resistance

100M min.(at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2000 VAC, 50/60 Hz for 1 minute between current-Carrying part and ground.

Vibration

Malfunction durability:10 to 55Hz 1.5mm double amplitude

Shock

Mechanical durability:
Approx.1,000m/sec2 (approx. 100G's)
Malfunction durability:Approx.300m/sec2 (approx.30 G's)

Ambient operating temperature

General purpose type: -25 to +80
High temperature type: 25 to 120

Humidity

General purpose type:85% RH max
Sealed type:95% RH

Service life

Mechanically:
5,000,000 operations min
Electrically:(1.5A, 110VAC)MAX
500,000 operations min.
