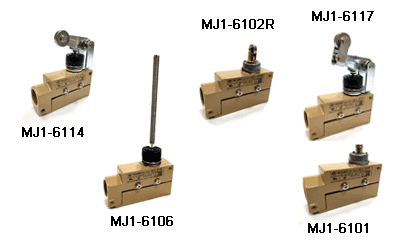

  ENCLOSED LIMIT SWITCHES  (Made in Taiwan)
CHARACTERISTICS :

Operating speed

0.01mm  to 1m/sec

Operating frequency

Mechanically: 240 operations/min.
Electrically: 20 operations/min.

Contact resistance

15m max.(initial)

Insulation resistance

100M min.(at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2,000 VAC, 50/60 Hz for 1 minute between current-Carrying part and ground.

Vibration

Malfunction durability:10 to 55Hz 1.5mm double amplitude

Shock

Mechanical durability:
Approx.1,000m/sec2 (approx. 100G's)
Malfunction durability:Approx.300m/sec2 (approx.30 G's)

Ambient operating temperature

Operating: -10 to + 80

Humidity

General purpose type:85% RH max
Sealed type:95% RH

Service life

Mechanically:
20,000,000 operations min
Electrically:(1.7A, 110VAC)MAX
500,000 operations min.
