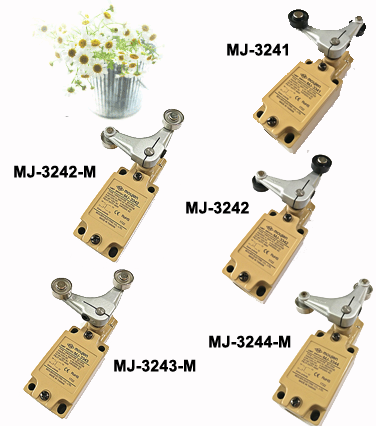

  PRECISION OIL-TIGHT LIMIT SWITCHES  (Made in Taiwan)
  OVERTRAVEL TYPE :
    The Overtravel Type is a limit switch which is provided with a greater OT to facilitate dog setting.
Since this type is indentical to the Basic Type in dimension, both types are interchangeable.
The Overtravel Type is classified into two versions -71 series and -72 series.

-71 series
The head of -71 series switch can be installed in any of the four directions:
45X operation on either side-possible

-72 series
The head of -72 series switch can be installed only in two directions, forward and backward:
90X operation on either side-possible

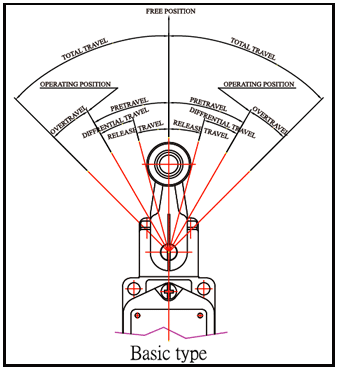

  ROTARY ACTUATION :


  REMARK :
    MJ-7107L,MJ-7207L 395mm long stick : 395mm

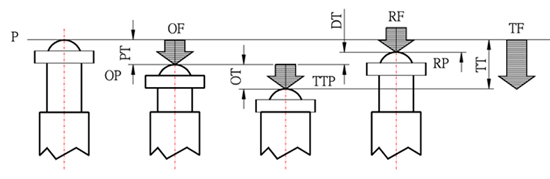

  IN-LINE PLUNGER ACTUATION :
    Characteristics:OF-Operating Force;
PT-Pretravel; OT-Over Travel ; DT-Differential Travel
RF-Release Force; OP-Operation Position;
TF-Travel Force; RP-Release Position; TT-Total Travel
