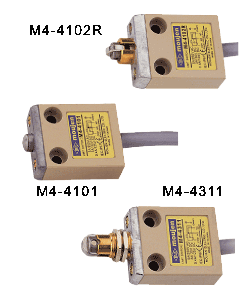

  ENCLOSED LIMIT SWITCHES  (Made in Taiwan)
CHARACTERISTICS

Operating Speed 0.1mm ~ 0.5m/s,
M4-4104(4114) 1mm ~ 1m/s
Operating
Temperature
-20 ~ +70 (Without freezing)
Humidity 95% RH Max
Operating Frequency Mechanically : 120 operations/min.
Electrically : 30 operations/min.
Contact resistance 300m / Max. (initial) (with 3m Cable)
Insulation resistance 100M / Max. (550V/DC)
Dielectric strength Between non-continuous terminals: 1000V AC 50/60Hz i minute.
Between each terminal and non-current-carrying metal part and
Between each terminal and ground : 1500V AC 50/60Hz i minute.
Vibration Malfunction durability : 10~50Hz ; 1.5mm double amplitude.
Shock Mechanically durability : 1000 m/sec2 (approx 100G)
Malfunction durability : 300 m/sec2 (approx 30G)
Service life Mechanically : 2,000,000 operations min.(Standard)
500,000 operations min.
(Positive Opening Contacts)
Electrically : 200,000 operations min,(1.5A,110VAC)MAX.
Protection Degree IEC : IP67

ORDERING CODE

AC TYPE DC TYPE Cable length
M4-QAC-2 M4-QDC-2 2m
M4-QAC-4 M4-QDC-4 4m
M4-QAC-6 M4-QDC-6 6m
