  M22 SWITCHES SERIES  (Made in Taiwan)

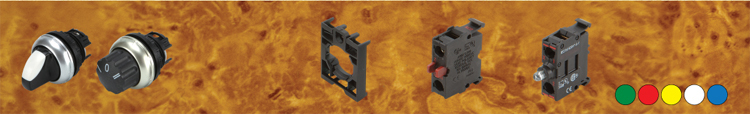

M22S Selector Actuators Switch
Shape

Operation Code

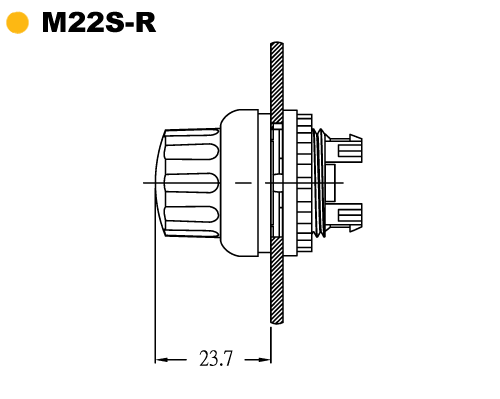

Rotary R

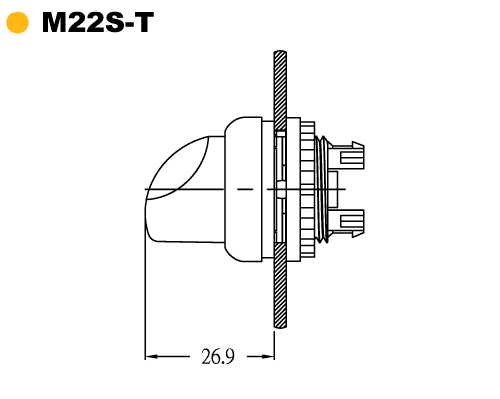

Thump grip T
Operation

Position Code
2 positons(40 spring return) 22
2 positons(60 stay-put) 20
3 positons(40 spring return) 32
3positons(60 stay-put) 30


Wiring terminal

Wiring terminal Code
Screw Terminals with Fixing on Adapter SF
Screw terminals with Fixing on Base SB
Clamp terminals with Fixing on Adapter CF
Clamp terminals with Fixing on Base CB
PCB terminals with fixing on adapter PF

Contact switch block

Contact switch block Code
NO+NC(1A+1B) 11
NO(1A) 10
NC(1B) 01
2NO(2A) 20
2NC(2B) 02


Rating operation voltage

Rating operation voltage Code
(Thumb grip only)
LED30V E30
LED230V E230


Color of lens

Color of lens Code
Green G
Red R
Yellow Y
White W
Blue BL

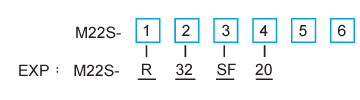

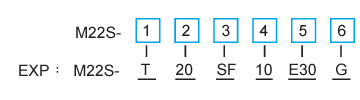

  Type No. Example



  1. M22S-T20SF10E30G   2. M22S-R32SF20
