  M22 SWITCHES SERIES  (Made in Taiwan)

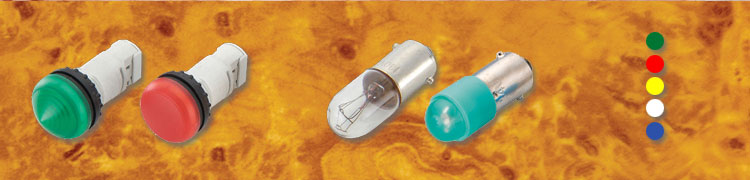

M22LC Compact Pilot Lights
Shape

Operation Code

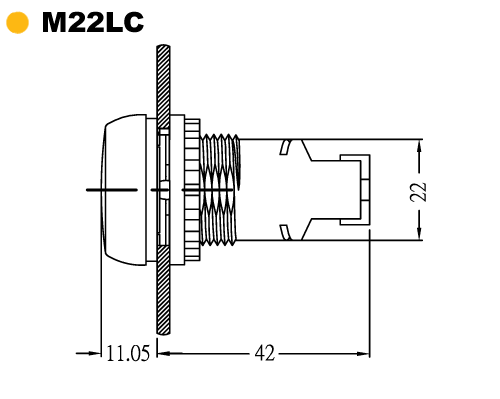

Flat head F

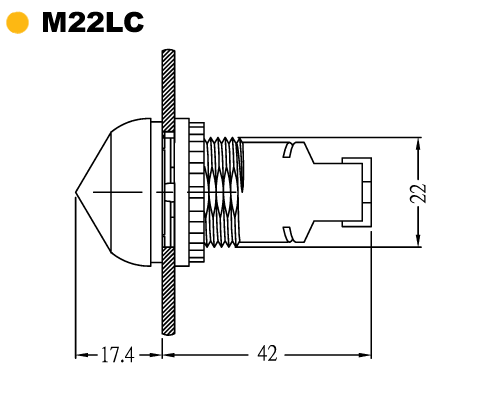

Extended head X
Rating Operation Voltage(bulb)

Rating Operation Voltage(bulb) Code
Incandescent(AC/DC)
6V AC/DC 06
14V AC/DC 14
28V AC/DC 28
120V AC/DC 120
LED
6V AC/DC E06
12V AC/DC E12
24V AC/DC E24
110V AC/DC E110
220V AC/DC E220
Color of lens

Color of lens Code
Green G
Red R
Yellow Y
White W
Blue BL

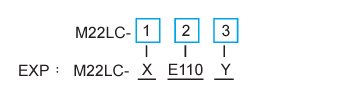

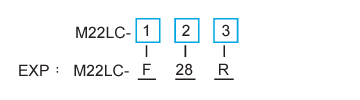

  Type No. Example



  1. M22LC-F28R   2. M22LC-XE110Y
