  M22 SWITCHES SERIES  (Made in Taiwan)

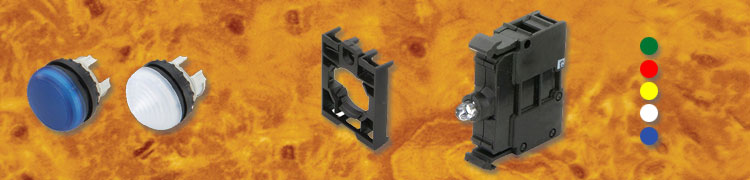

M22L Pilot Lights
Shape

Operation Code

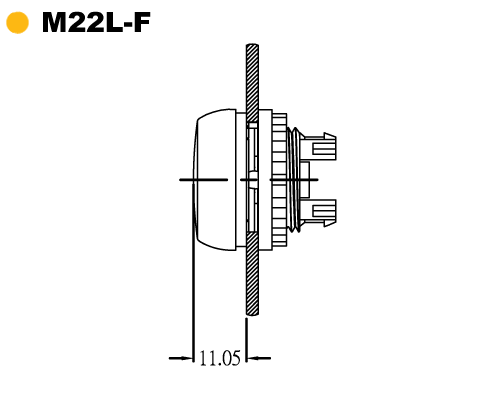

Flat head F
Extended head X
Wiring terminal

Wiring terminal Code
Screw Terminals with Fixing on Adapter SF
Screw terminals with Fixing on Base SB
Clamp terminals with Fixing on Adapter CF
Clamp terminals with Fixing on Base CB
PCB terminals with fixing on adapter PF

Rating operation voltage

Rating operation voltage Code
LED30V E30
LED230V E230

Color of lens

Color of lens Code
Green G
Red R
Yellow Y
White W
Blue BL

Symbol

Symbol
As required.
"
"
"
"

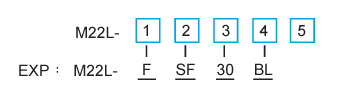

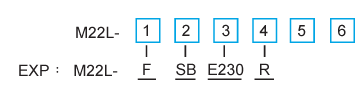

  Type No. Example



  1. M22L-FSF30BL   2. M22L-FSBE230R
