  M22 SWITCHES SERIES  (Made in Taiwan)

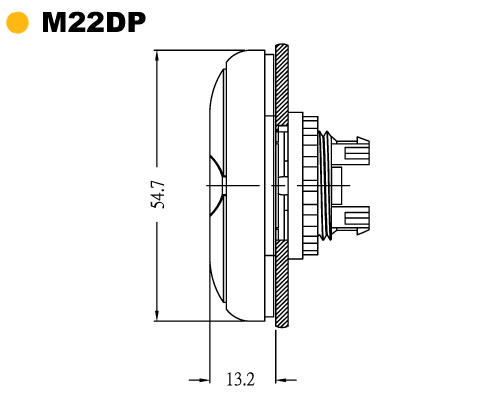

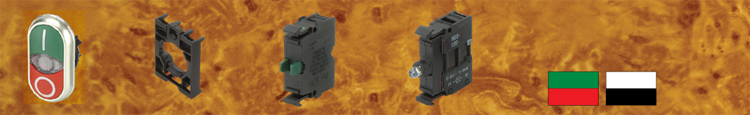

M22DP Double Actuators Pushbutton


Wiring terminal

Wiring terminal Code
Screw Terminals with Fixing on Adapter SF
Screw terminals with Fixing on Base SB
Clamp terminals with Fixing on Adapter CF
Clamp terminals with Fixing on Base CB
PCB terminals with fixing on adapter PF
Contact switch block

Contact switch block Code
NO+NC(1A+1B) 11

Rating operation voltage

Rating operation voltage Code
LED30V E30
LED230V E230
Color of lens

Color of lens Code
Green
Red
GR
White
Black
WB

Symbol

Symbol
< I , O >
<Start , Stop>
< + , - >
"
"

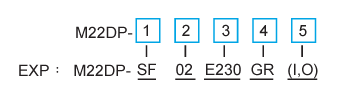

  Type No. Example



  M22DP-SF02E230GR(I, O)
