	M22 SWITCHES SERIES  (Made in Taiwan)

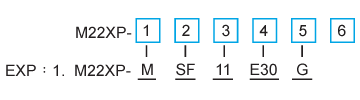

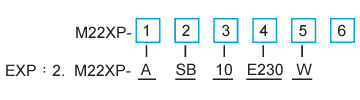

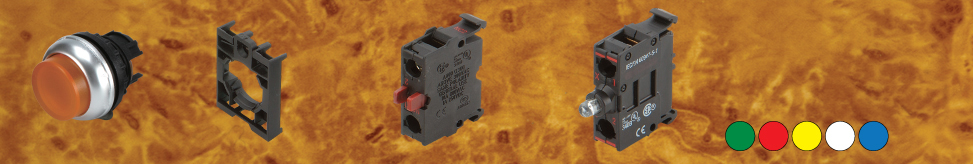

	M22XP Extended head/ Illuminated Pushbuttons Operation Operation Code Momentary M Alternate A Aluminum cover *Aluminum cover AM-Momentary *Aluminum cover AA-Alternate Wiring terminal Wiring terminal Code Screw Terminals with Fixing on Adapter SF Screw terminals with Fixing on Base SB Clamp terminals with Fixing on Adapter CF Clamp terminals with Fixing on Base CB PCB terminals with fixing on adapter PF Contact switch block Contact switch block Code NO+NC(1A+1B) 11 NO(1A) 10 NC(1B) 01 2NO(2A) 20 2NC(2B) 02 Rating operation voltage Rating operation voltage Code LED30V E30 LED230V E230 Color of lens Color of lens Code Green G Red R Yellow Y White W Blue BL Symbol Symbol As required. " " " "   Type No. Example         1. M22XP-MSF11E30G   2. M22XP-ASB10E230W           M22XP-AA M22XP-AM
