  M22 SWITCHES SERIES  (Made in Taiwan)

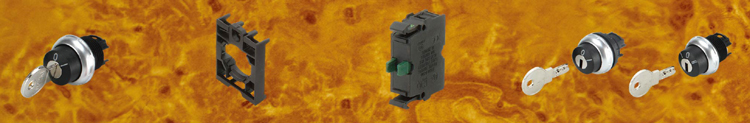

M22K Key-operated Actuators Switch
Operation

Position Code
2 positons(40 spring return) 22
2 positons(60 stay-put) 20
3 positons(40 spring return) 32
3positons(60 stay-put) 30


Wiring terminal

Wiring terminal Code
Screw Terminals with Fixing on Adapter SF
Screw terminals with Fixing on Base SB
Clamp terminals with Fixing on Adapter CF
Clamp terminals with Fixing on Base CB
PCB terminals with fixing on adapter PF
Contact switch block

Contact switch block Code
NO+NC(1A+1B) 11
NO(1A) 10
NC(1B) 01
2NO(2A) 20
2NC(2B) 02

Key withdrawable in position

Key withdrawable in position
2 positions 3 positions
A B C A B C D E F G
O O . I O O I . O . II I . O . O . II . O I . II . I .

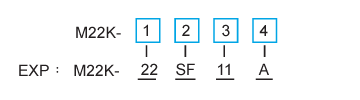

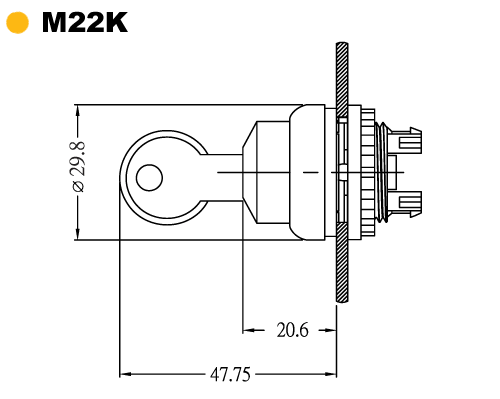

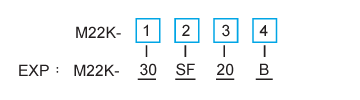

  Type No. Example



  1. M22K-22SF11A   2. M22K-30SF20B
