  M22 SWITCHES SERIES  (Made in Taiwan)

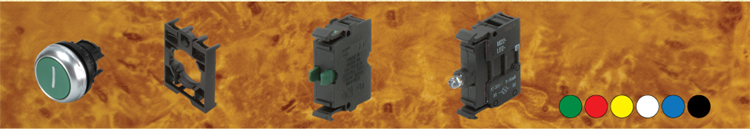

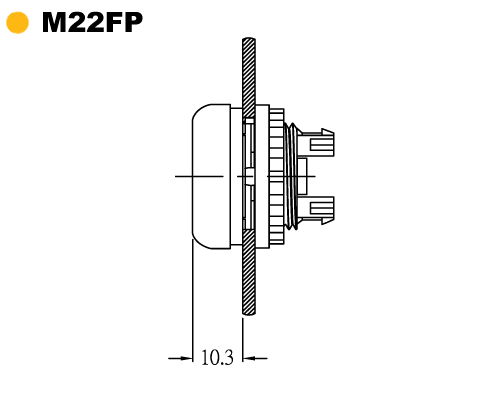

M22FP Flat head/ Illuminated Pushbuttons
Operation
Operation Code
Momentary M
Alternate A
Aluminum cover

*Aluminum cover AM-Momentary

*Aluminum cover AA-Alternate 		Wiring terminal

Wiring terminal Code
Screw Terminals with Fixing on Adapter SF
Screw terminals with Fixing on Base SB
Clamp terminals with Fixing on Adapter CF
Clamp terminals with Fixing on Base CB
PCB terminals with fixing on adapter PF
Contact switch block

Contact switch block Code
NO+NC(1A+1B) 11
NO(1A) 10
NC(1B) 01
2NO(2A) 20
2NC(2B) 02

Rating operation voltage

Rating operation voltage Code
LED30V E30
LED230V E230
Color of lens

Color of lens Code
Green G
Red R
Yellow Y
White W
Blue BL
White Opaque WO
Red Opaque RO
Black Opaque BKO

Symbol

Symbol
As required.
"
"
"
"
"
"
"

  Type No. Example

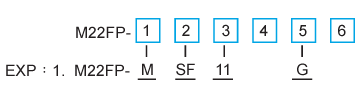

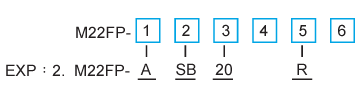

  1. M22FP-MSF11G   2. M22FP-ASB20E30R (LED 30V)


  M22FP-AM
