  M22 SWITCHES SERIES  (Made in Taiwan)

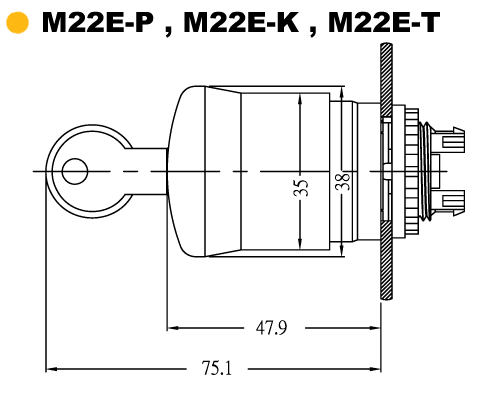

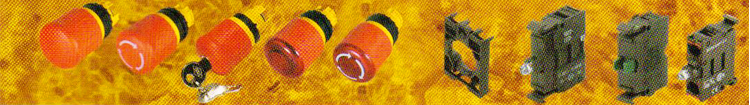

M22E Emergency-Stop Pushbuttons / M22EL Illuminated Emergency-Stop Pushbutton
  Operation
Operation Code
Pull to release P
Key to release K
Tum to release T
Wiring terminal

Wiring terminal Code
Screw Terminals with Fixing on Adapter SF
Screw terminals with Fixing on Base SB
Clamp terminals with Fixing on Adapter CF
Clamp terminals with Fixing on Base CB
Contact switch block

Contact switch block Code
NO+NC(1A+1B) 11
NO(1A) 10
NC(1B) 01
2NO(2A) 20
2NC(2B) 02

Rating operation voltage

Rating operation voltage Code
LED30V E30
LED230V E230
  Type No. Example


1. M22E-PSF20

  2. M22E-KSB11

  3. M22E-TSB20
