  M22 SWITCHES SERIES  (Made in Taiwan)

Dimensions

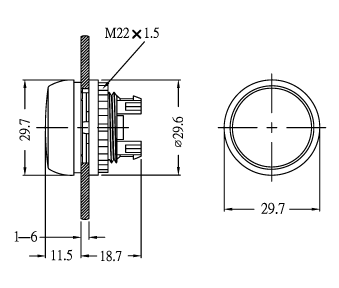

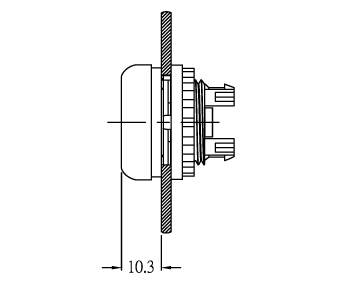

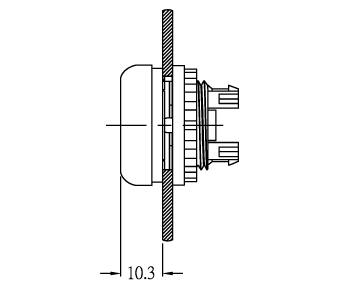

Pilot Lights Dimension M22 FP Pushbutton actuators

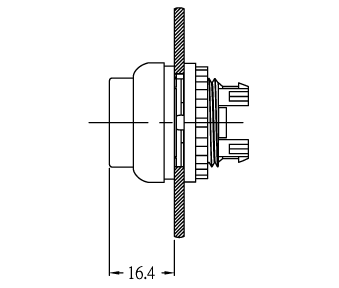

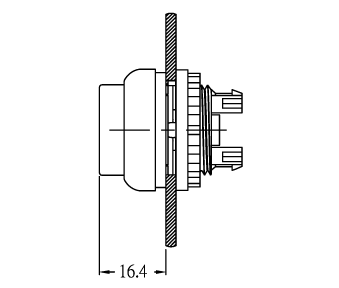

M22 XP Pushbutton actuators M22 DP Pushbutton actuators

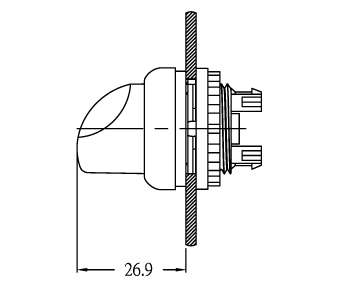

M22 FP SB Pushbutton in base fixing M22 S-R Selector switch actuators

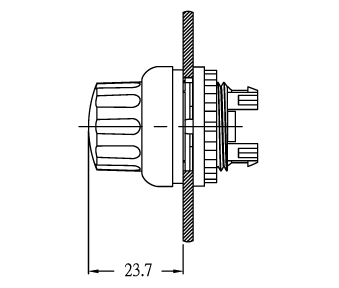

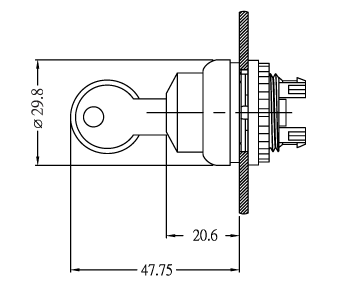

M22 S-T Selector switch actuators M22 K Key-operated actuators

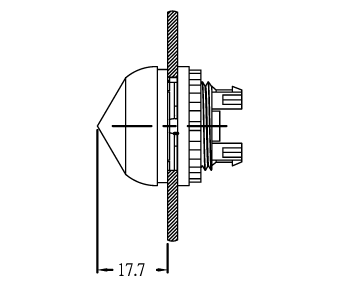

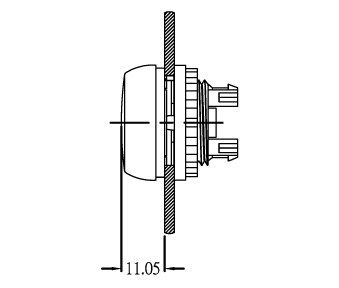

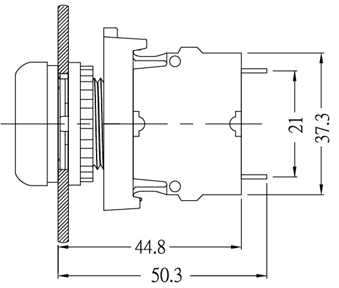

M22 L-X Pilot Lights M22 L-F Pilot Lights
M22 FP Illuminated pushbuttons M22 XP Illuminated pushbuttons

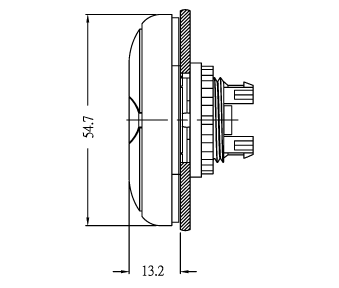

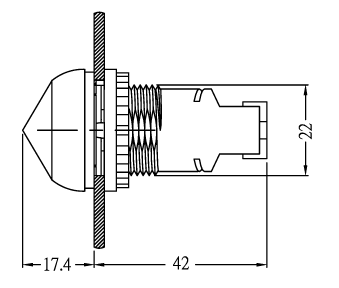

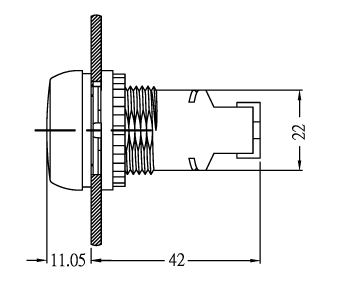

M22 MP Mushroom buttons M22 LC Compact Pilot Lights

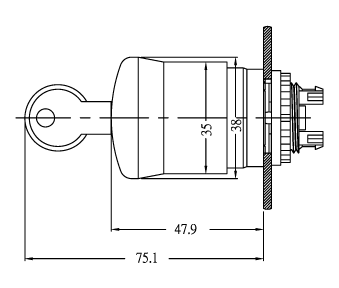

M22 LC Compact Pilot Lights M22 E-P , M22E-K , M22E-T Emergency-Stop actuators

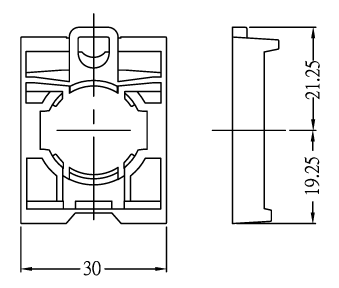

M22-A3 Fixing adapter M22-A4 Fixing adapter

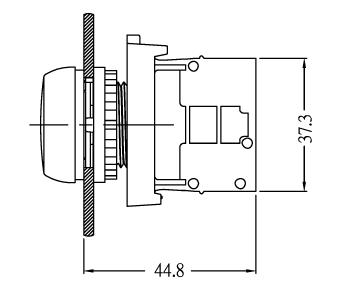

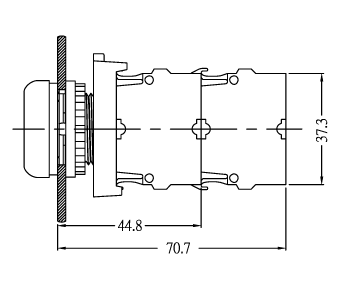

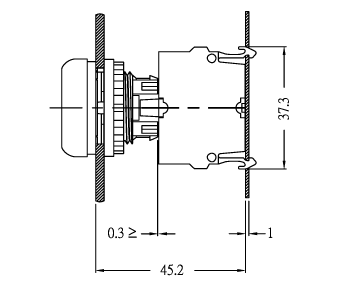

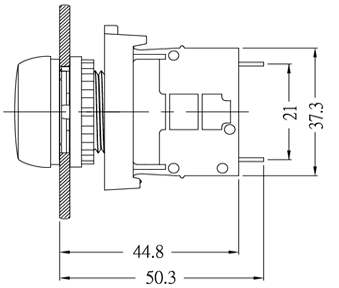

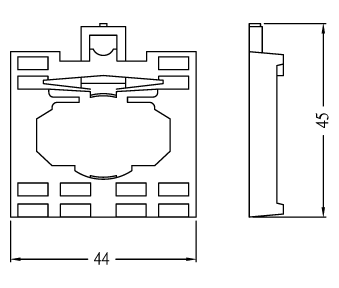

M22-SF-LED Switch block front fixing M22- Plus second layer switch block

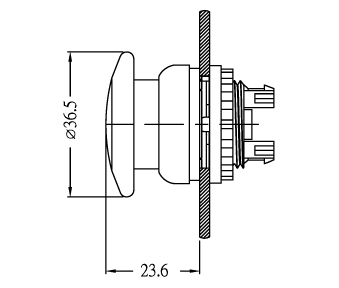

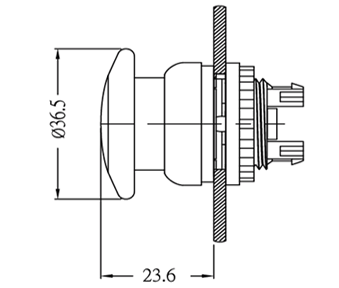

M22MP- Mushroom buttons
M22MPL- Illuminated Mushroom buttons

M22-PF-LED- PCB terminals (LED Element)
M22-PF-NO&NC- PCB terminals (NO&NC)

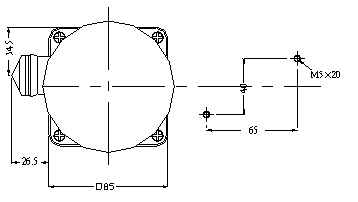

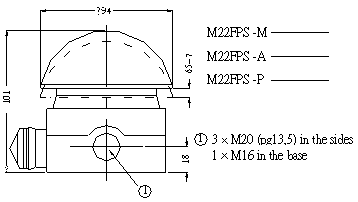

M22FPS Foot and palm switchs

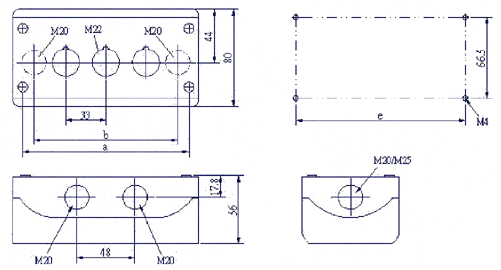

Switch Box B1~B6


Type Mounting a b e Cable entries
B1 1 72 42.6 58.5 2xM16 3xM20 2xM25
B2 2 120 85.6 106.5 2xM20 3xM20 2xM25
B3 3 153 118.6 139.5 2xM25 2xM25 4xM20
B4 4 186 151.6 172.5 2xM20 2xM25 4xM20
B6 6 252 217.6 238.5 2xM20 2xM25 4xM20


M22-All Series

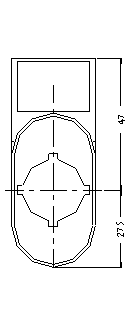

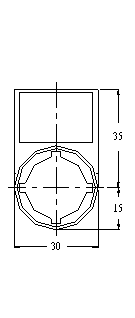

Label mounts 		M22DP

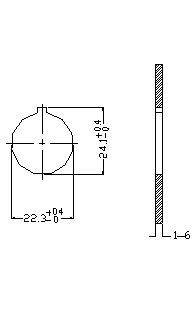

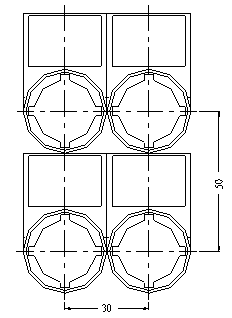

Label mounts 		Mounting hole with lug slot Grid dimension to IEC/EN 60947

M22E-GRC
Guard ring cover for emergency-stop		 M22E-GR
Guard ring for emergency-stop

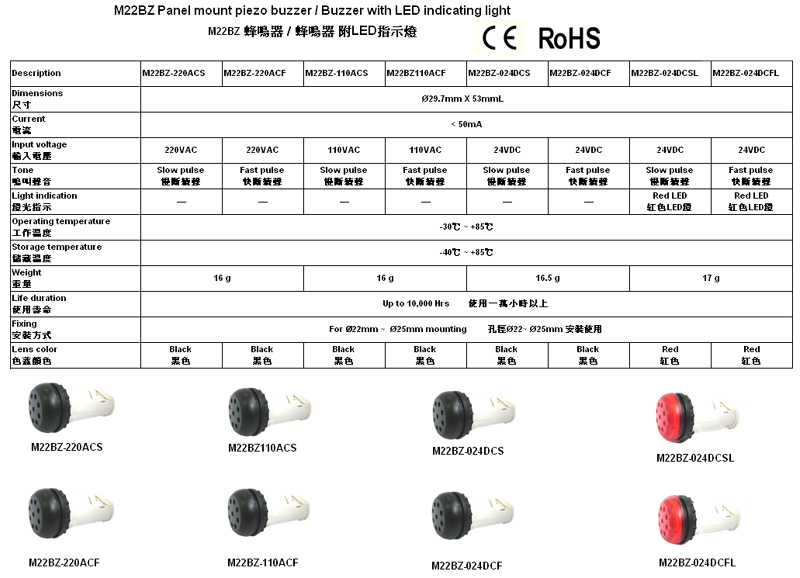

M22BZ蜂鳴器BUZZER
